◉L-Shaped Bookend Principle

　Using the “L-shaped bookend principle,” the weight of the water presses against the base of the barrier, converting weight into stabilizing pressure.
　Even when floodwater reaches the top of the barrier, it remains highly stable and will not topple—the higher the water level, the stronger the blocking effect.


◉Key Structure

　Unlike previous models that required forceful side-to-side pulling for assembly.

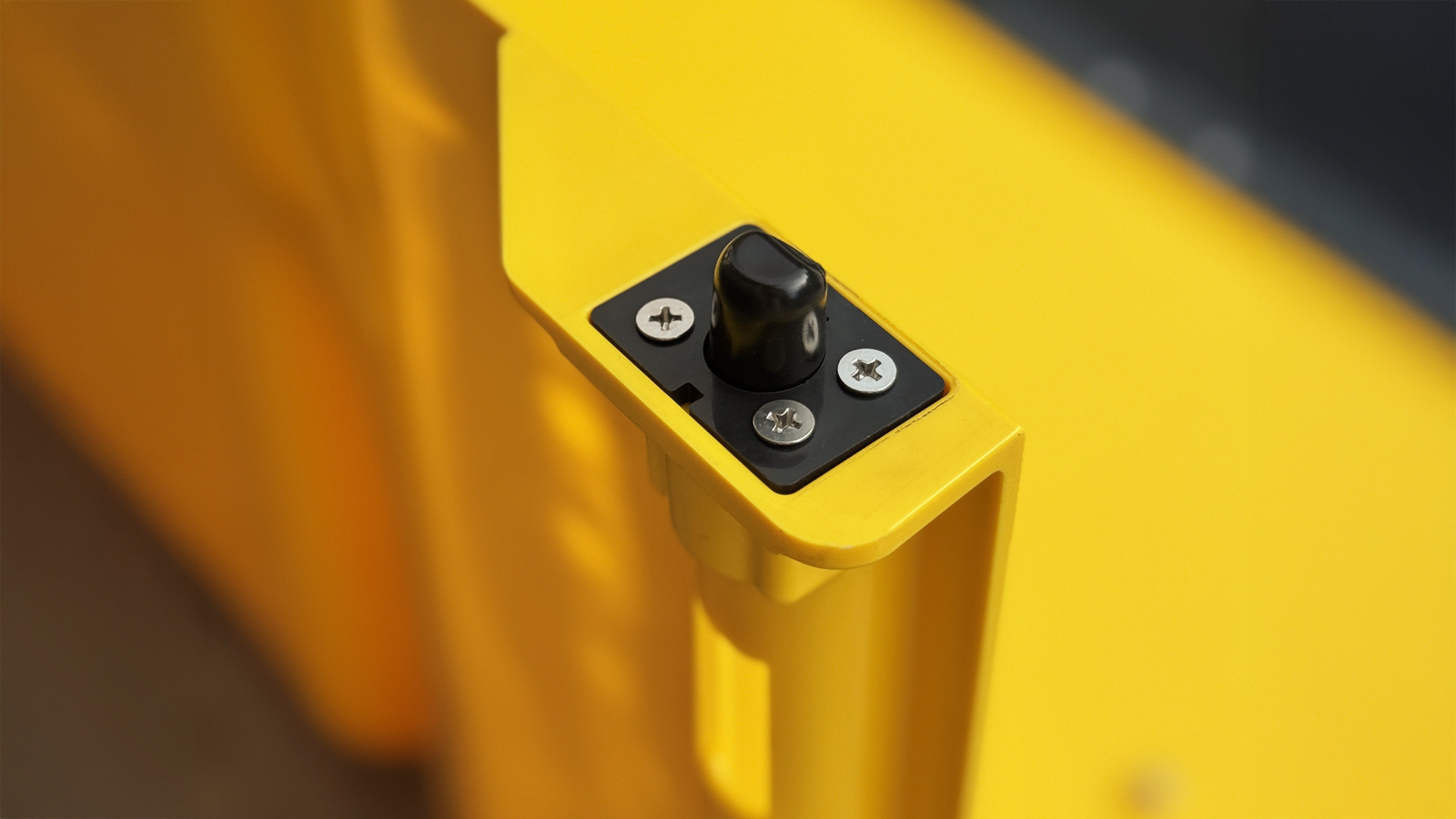

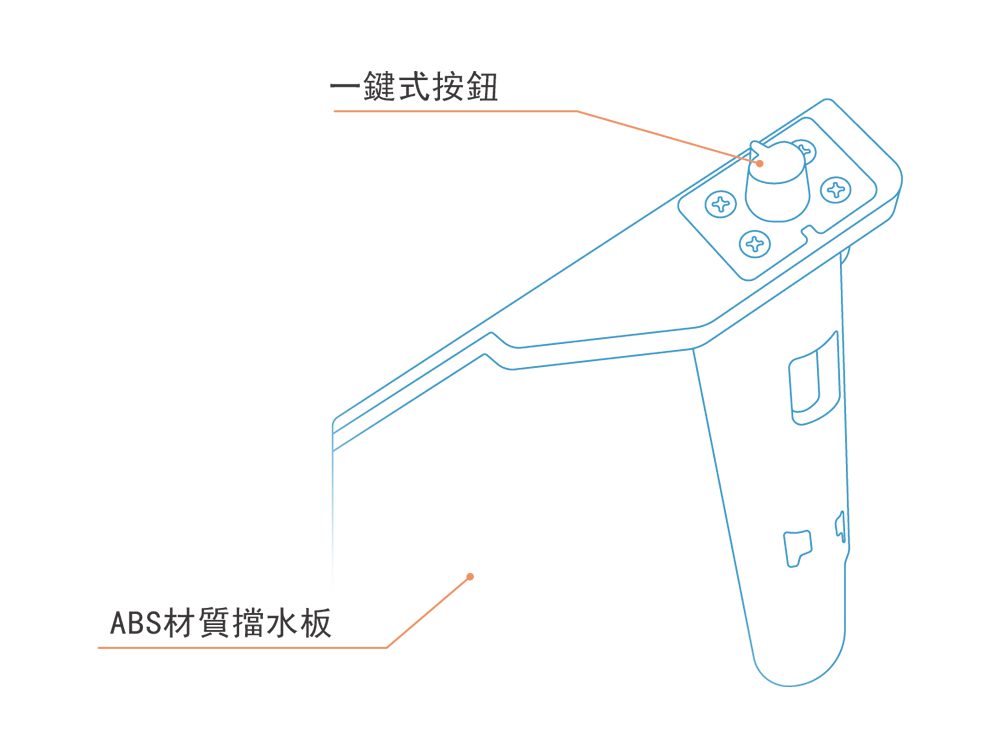

　The T-F55 is equipped with a one-touch button locking system for intuitive installation and quick disassembly, delivering a more efficient and safer flood control experience.

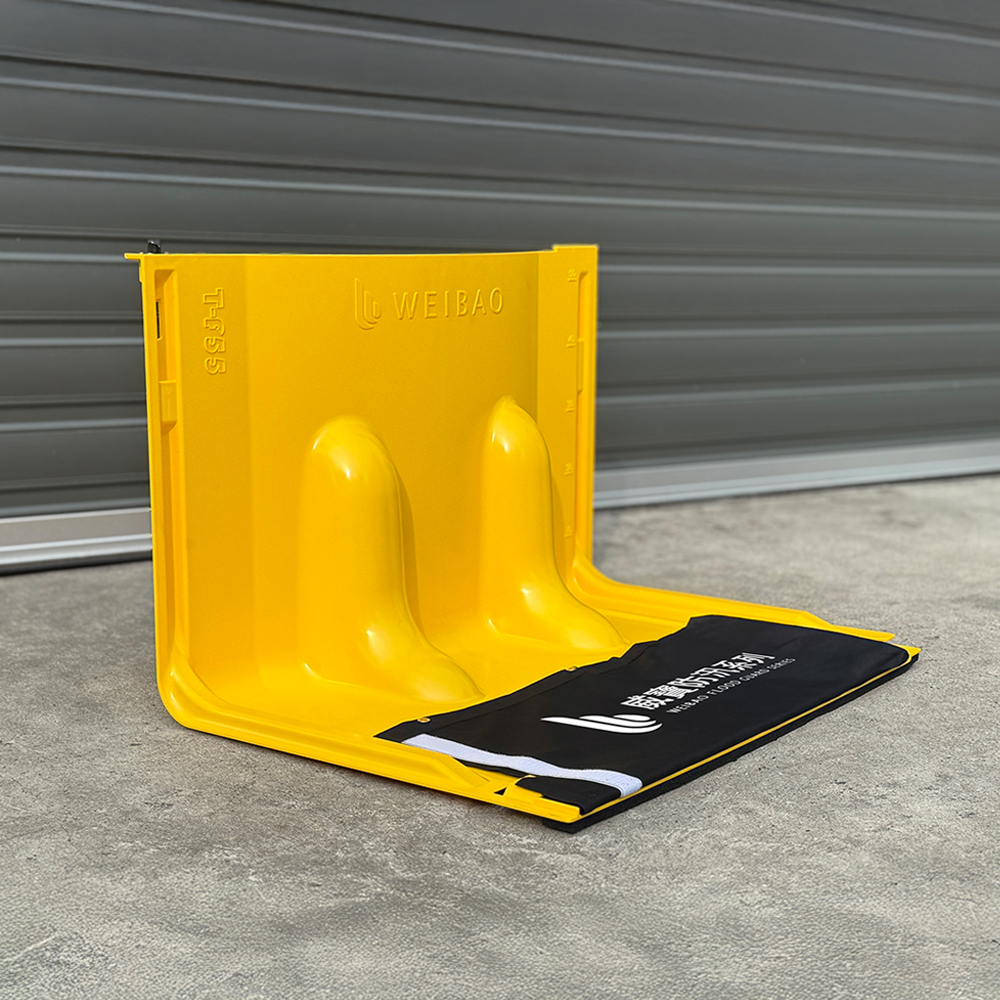

　A foldable canvas flap is attached to the bottom of the barrier to prevent storage inconvenience.

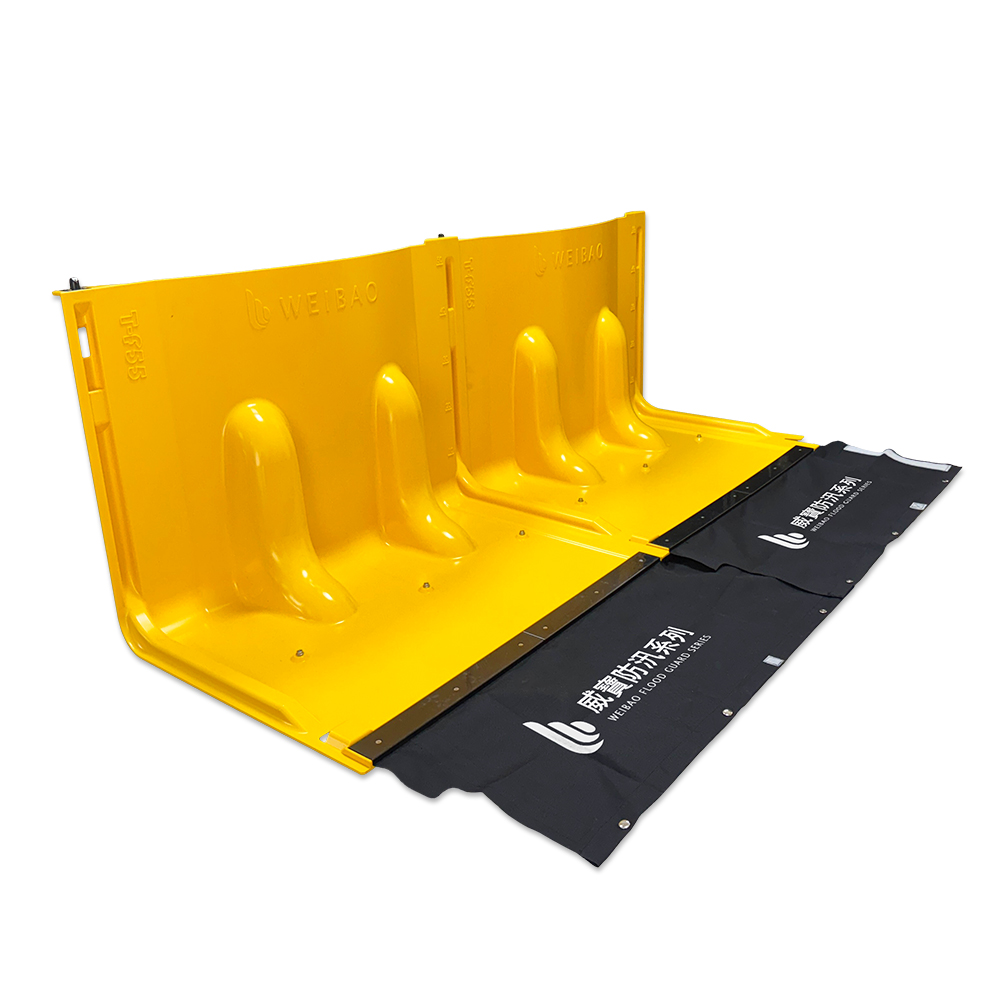

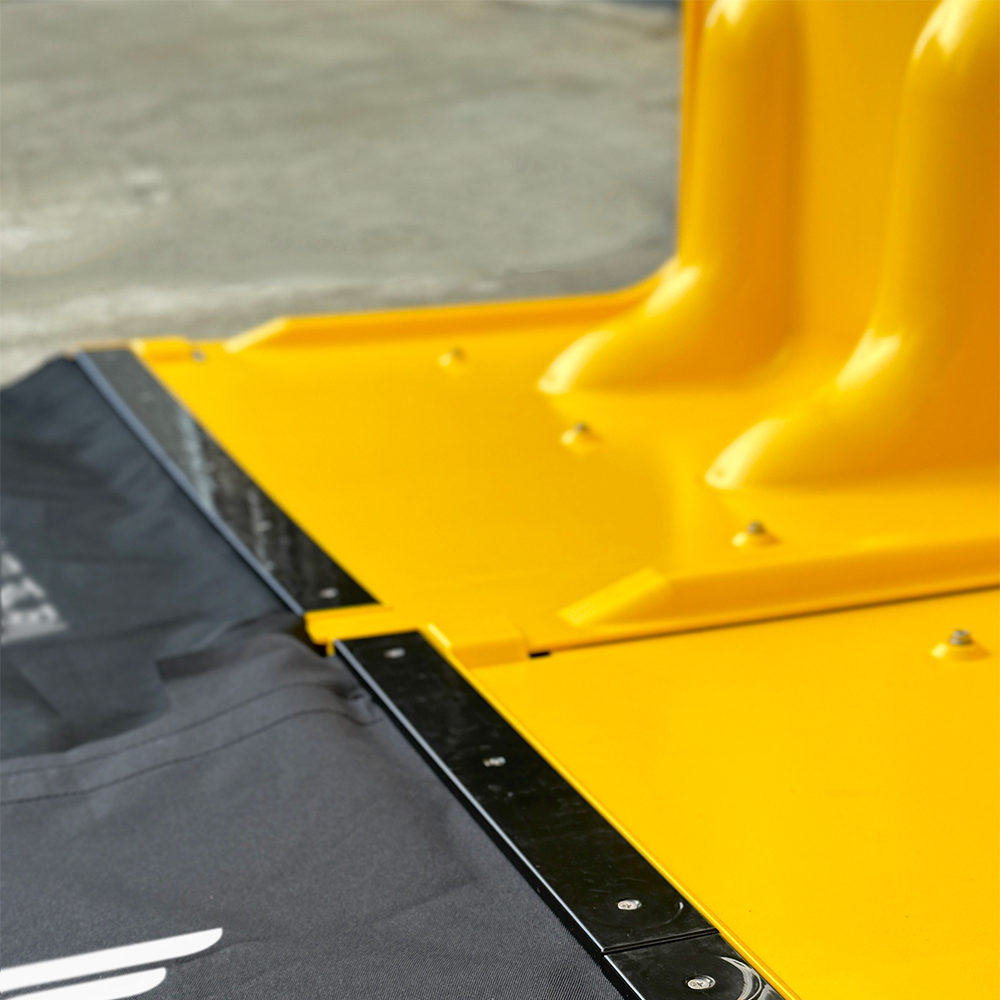

　Both the inner and outer sides of the canvas feature hook-and-loop fasteners, allowing multiple panels to be tightly joined side by side to prevent seepage through gaps.
　At the same time, the flap expands the pressure-bearing surface at the base, making the barrier more stable and less prone to tipping.

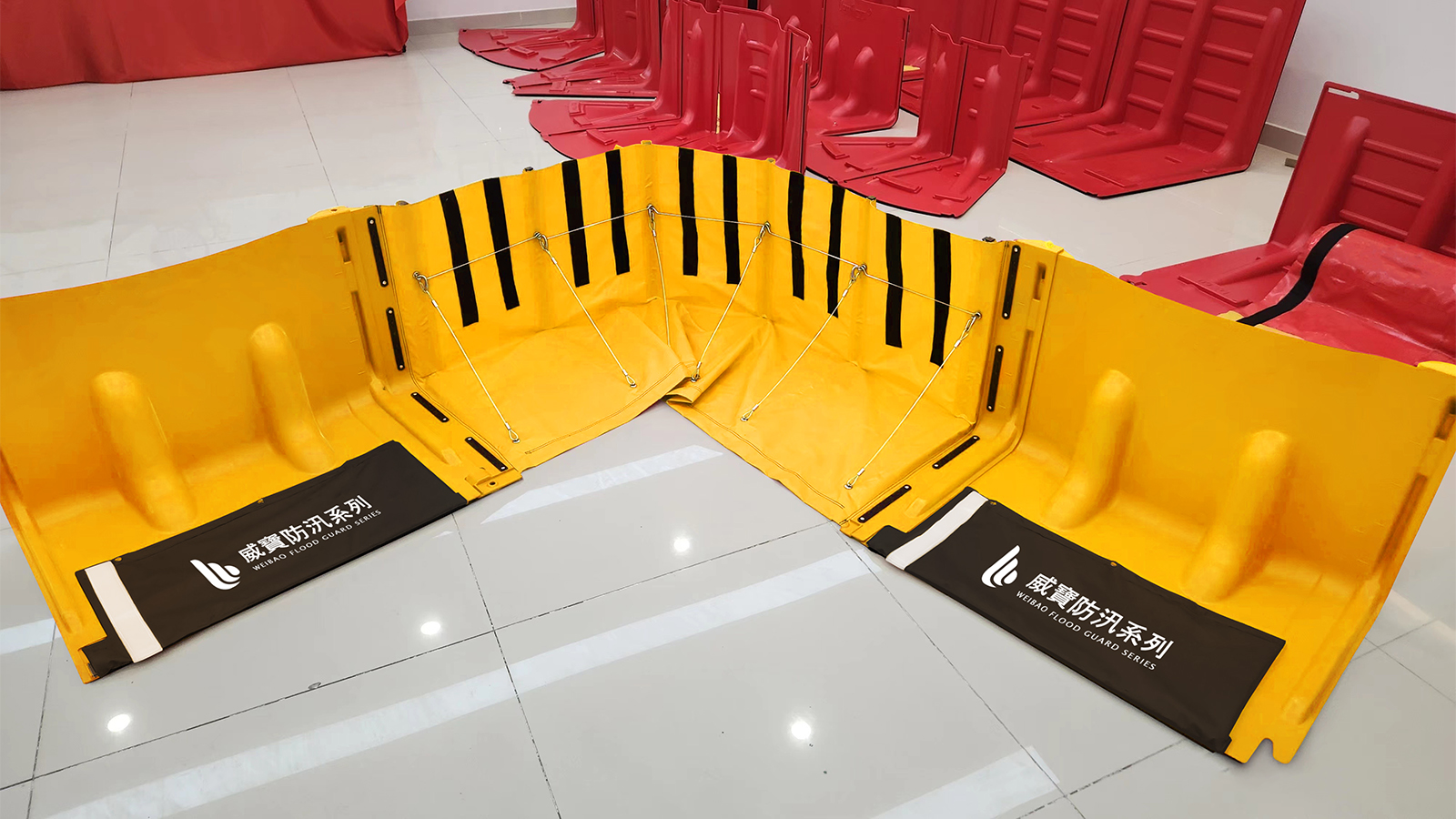

　The T-F55 can also be paired with dedicated telescopic corner connectors, providing flexibility to adapt to complex terrains and enabling multi-angle bends.

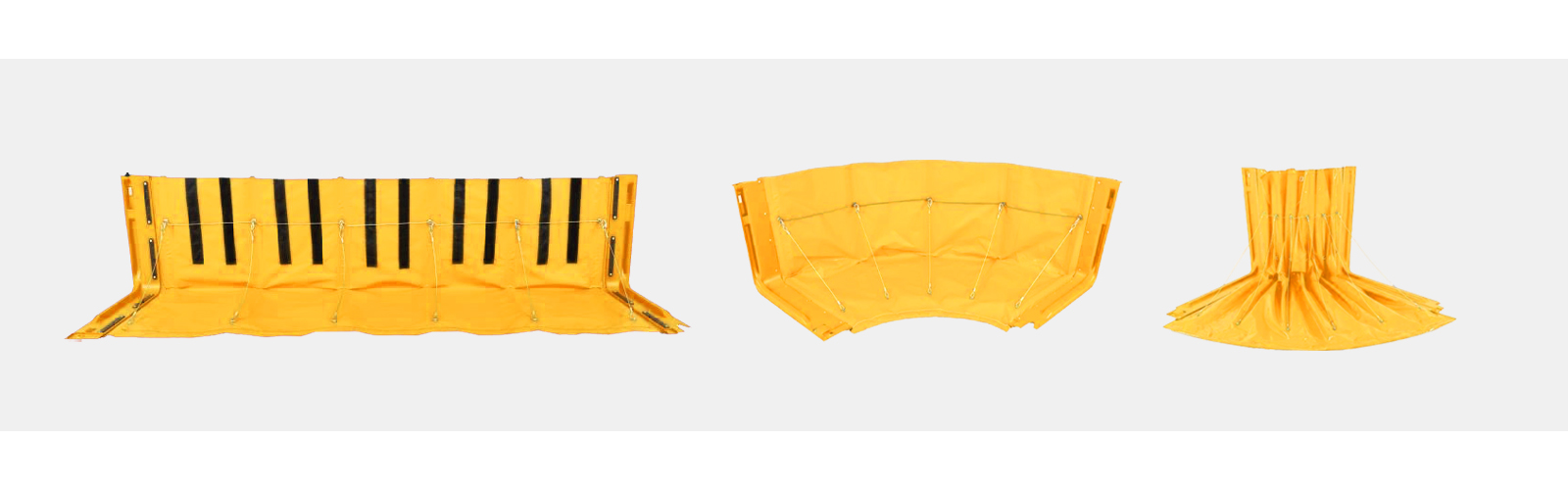

　Breaking the limitations of fixed angles, the curved connector supports both inward and outward bending.
　When floodwaters strike, the structure can be further reinforced with ropes and the L-shaped principle, ensuring stability and enhanced disaster resilience.

◉Installation Steps

【Product Information】
・Product name : Flood Guard Barrier (T-F55)
・Model no. : WB T-F55
・Dimensions : W 35.4 in × H 21.7 in × D 24 in
・Net weight : 11.2 lb / Piece
・Material : ABS Plastic, canvas
・Warranty : 5 years (End Flood Strip not included)

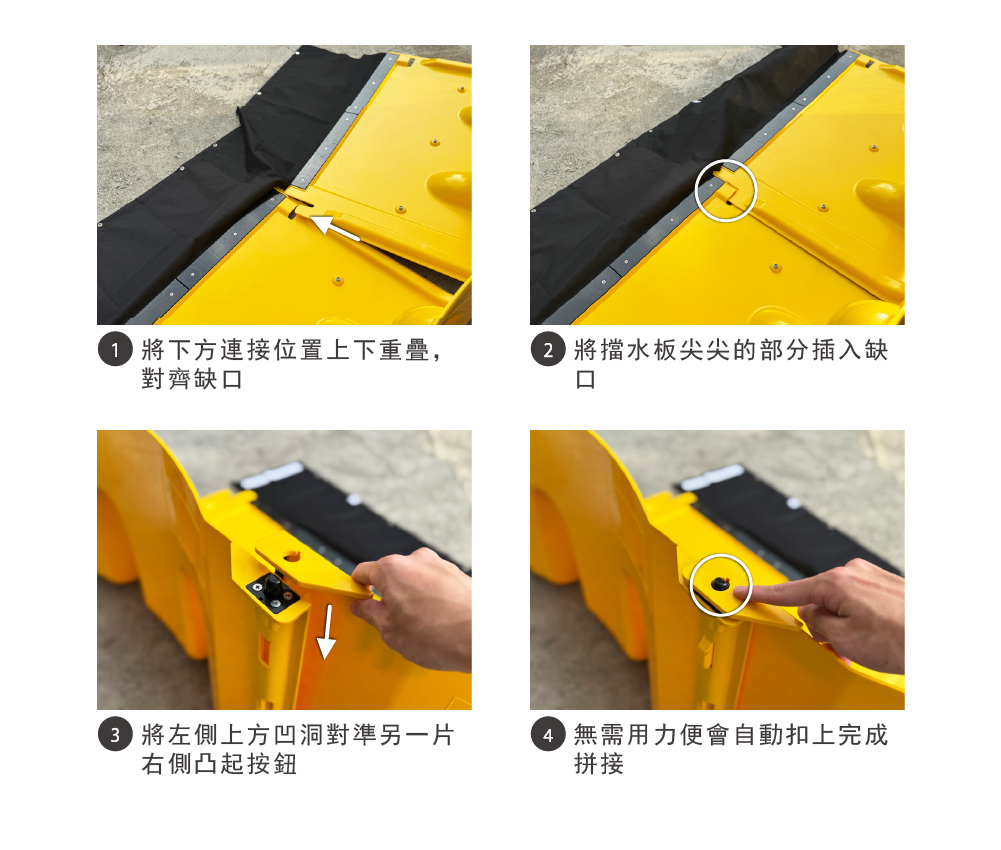

【Installation Steps】
1. Overlap the lower connection slots vertically and align the notches.
2. Insert the pointed end of the barrier panel into the notch.
3. Align the upper notch on the left panel with the button protrusion on the right panel.
4. The panels will automatically snap together with minimal effort.
※To disassemble, simply press the button downward to release.


【Frequently Asked Questions】
Q1. Can the Flood Guard Barrier only be placed on flat ground? What if there are drains, slopes, or cracks in the surface?
　　The Flood Guard Barrier performs best on hard, level ground, but it is not limited to flat surfaces. On uneven ground such as concrete, asphalt, or slopes, it can be paired with accessories like the End Flood Barrier or End Flood Strip to seal gaps. For steeper slopes, Tech Sandbags or ground stakes can be used for reinforcement. On-site SOP guidance is also provided for flexible deployment.

Q2. If the water comes too fast or too strong, can the modular barrier really hold it back?
　　The Flood Guard Barrier is not a permanent levee—it is designed to quickly block initial floodwaters, slow down inundation, and buy time for repairs and evacuation. Field tests have shown that with proper setup, the barrier can remain upright under strong water pressure and effectively divert flow to reduce the risk of collapse.

Q3. How many years can the Flood Guard Barrier be used? Is there a warranty?
　　Tests show the panel structure can be reused for over 5 years, with excellent impact and compression resistance, and it can be stacked for storage. A 5-year warranty is provided, excluding consumable parts such as the End Flood Strip.

Q4. Will the barrier become brittle or deformed after long use?
　　The panel body is made from UV-resistant, industrial-grade high-strength ABS plastic. Unlike cheaper injection-molded products on the market that crack or become brittle after sun exposure, our barriers resist such damage. Still, we recommend storing in a cool, shaded place to avoid direct sunlight. The modular design incorporates stress-guided corners and load-distribution ribs to prevent deformation or misalignment.

Q5. Will training be provided after delivery?
　　Yes. After delivery, we provide on-site instruction by a specialist, an operation manual, and a deployment diagram with recommended drainage points. Simply follow the diagrams and instructions—no engineering background is required for deployment.
